Commercial laundry design has a reputation for being straightforward. It shows up in the program, the space gets sized, and the machines get specified. Then design development starts, and the questions begin. Utility loads that nobody accounted for. Workflow separation requirements that affect the floor plan. Equipment sequencing that doesn’t match how the facility actually runs. The scope isn’t inherently complicated — it just has details that surface late when they should have been resolved early. Foodesign Associates has been providing commercial laundry design alongside foodservice work for nearly 50 years, across healthcare facilities, correctional institutions, hotels, and senior living communities. The laundry scope catches teams off guard on almost every project, usually because the decisions that made those details harder to solve were already finalized months prior.

Here is what we see happen, and how to get ahead of it before it costs you.

Calculating Utility Infrastructure in Commercial Laundry Design

The loads are always bigger than they look on paper. A commercial laundry facility in a healthcare setting might process hundreds of pounds of linen per day, while a correctional facility might run three shifts around the clock.The utility demand — hot and cold water supply, drain capacity, electrical loads, and gas or steam for heated drying — is significant. While the equipment footprint looks manageable on a floor plan, the infrastructure required to support it is a different conversation entirely.

The risk: If mechanical and plumbing engineers aren’t coordinating with the laundry layout early, you end up with a chase that can’t carry the load, a drain in the wrong place, or a water heater sized for a different building. These are not small fixes at rough-in.

Infection Control and Workflow Separation Requirements

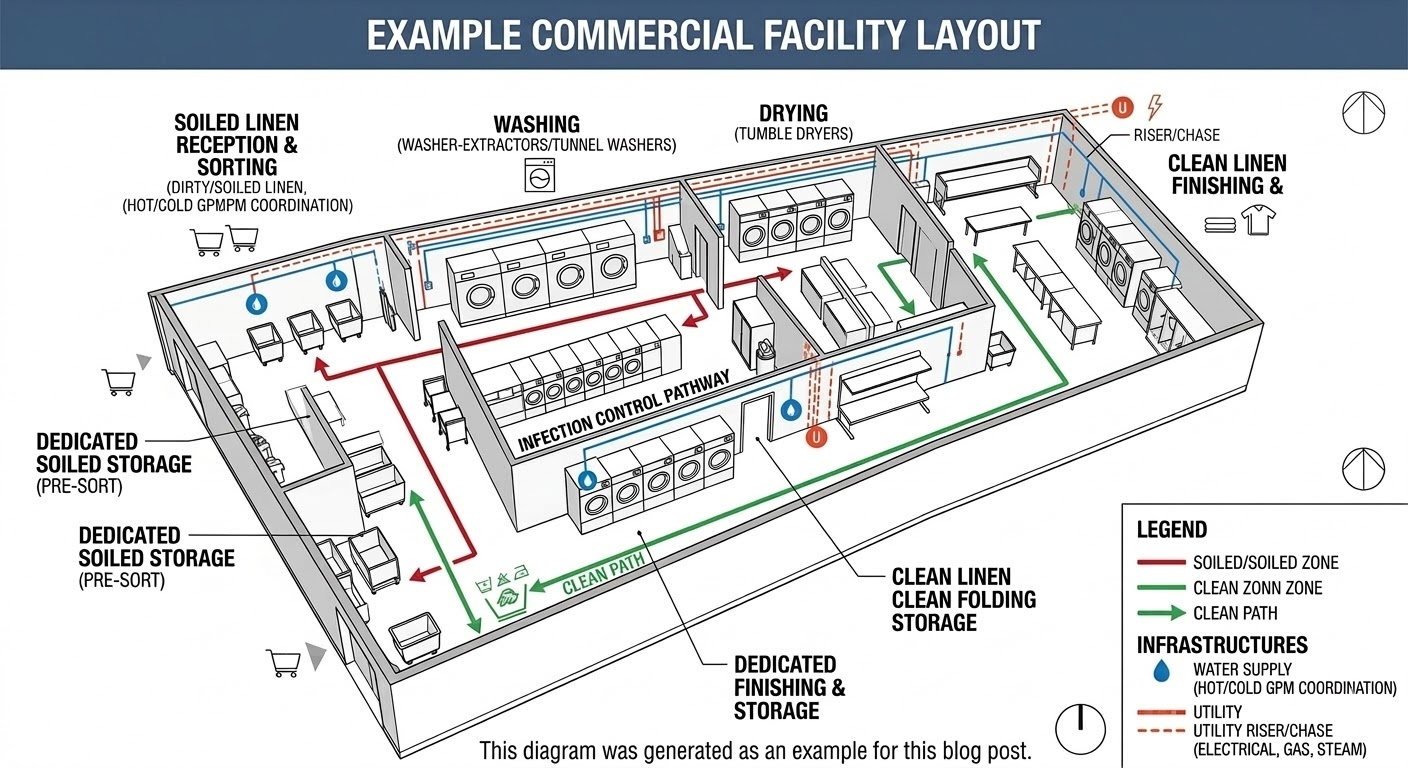

In healthcare and senior living facilities, the separation between soiled and clean linen isn’t a preference. It is a strict code and infection control requirement. The path dirty linen travels cannot cross the path of clean linen.

This requires a layout that enforces separation without relying on staff to remember it, including:

• Physical separation: Separate entry and exit points for linen carts.
• Dedicated storage zones: Distinct areas for soiled sorting and clean folding.
• Compliance layouts: Ensuring the soiled-to-clean flow meets FGI or local health department guidelines.

Changing a commercial laundry layout after the walls go in means moving doors and reconfiguring entire rooms. It’s an expensive conversation to have late in the project.

Equipment Sequencing: Designing for Operational Reality

Fitting equipment into square footage is the easy part. Designing for the actual operation is harder. A functional industrial laundry design must account for more than just the machines:

• Staging and movement: Where do linen carts sit, and how do they move through the cycle?
• Maintenance access: Is there enough clearance to service a machine without shutting down the entire room?
• Contingency planning: What happens to the workflow if one washer-extractor goes down?

These questions sound operational, but they have physical design implications. If they aren’t answered before schematic design, the layout will inevitably require rework.

Why Laundry Design Is Often Overlooked

Laundry is rarely the lead scope. On a hospital project, the kitchen receives more attention. On a hotel, the back-of-house focus is usually the food and beverage operation.

Laundry gets added to the program, sized based on square footage assumptions, and handed off to a contractor to install machines in whatever space is left.

The facilities where laundry creates the biggest problems are the ones where it was treated as secondary in design. The facilities where it runs efficiently for 20+ years are the ones where someone asked the operational questions early and built the design around the answers.

Partnering with Foodesign Associates

If laundry is in your program, the window to get it right is during schematic design — when the layout is still flexible and the engineers are still making core decisions.

Foodesign Associates has designed commercial laundry facilities across the healthcare, correctional, hospitality, and senior living sectors. We work alongside architects to ensure the laundry room works the way the facility actually runs.

Is laundry on your current project program? Let’s talk through the coordination details before the drawings are issued.
